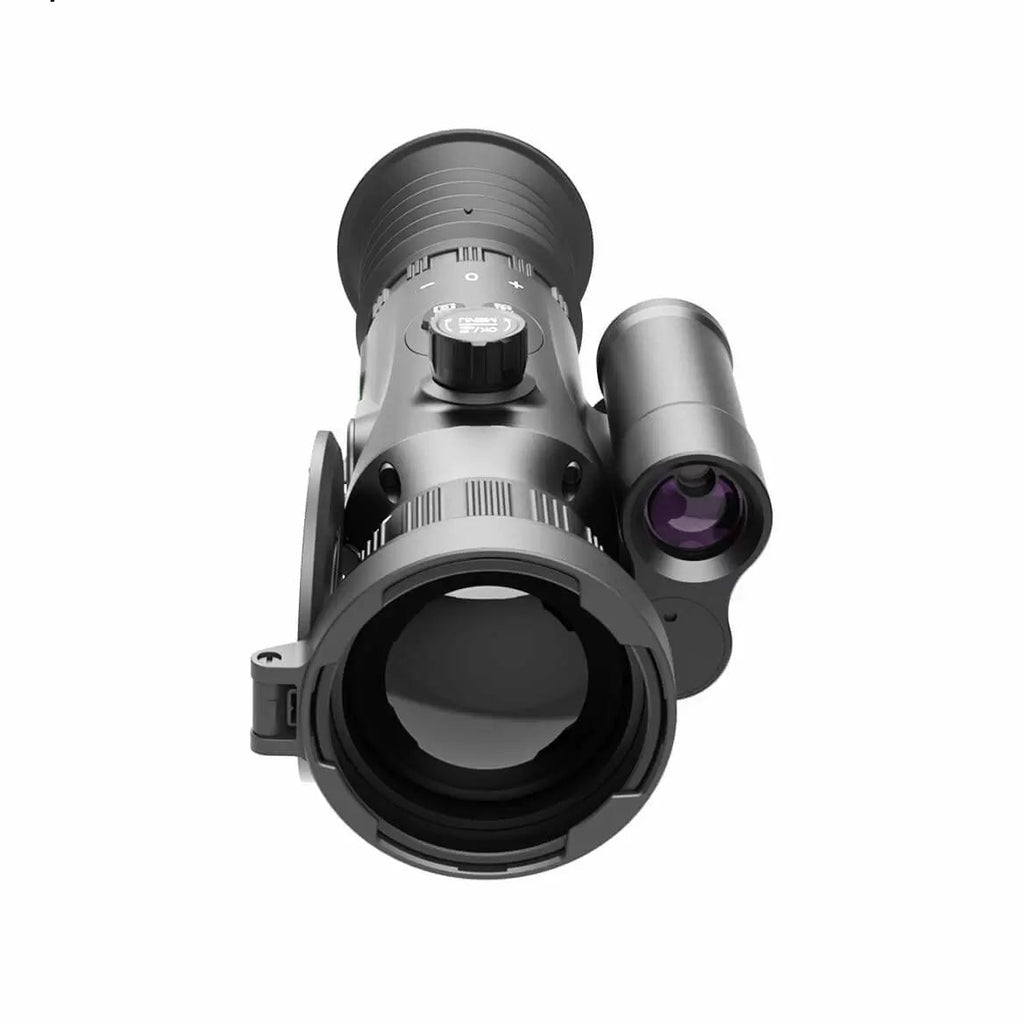

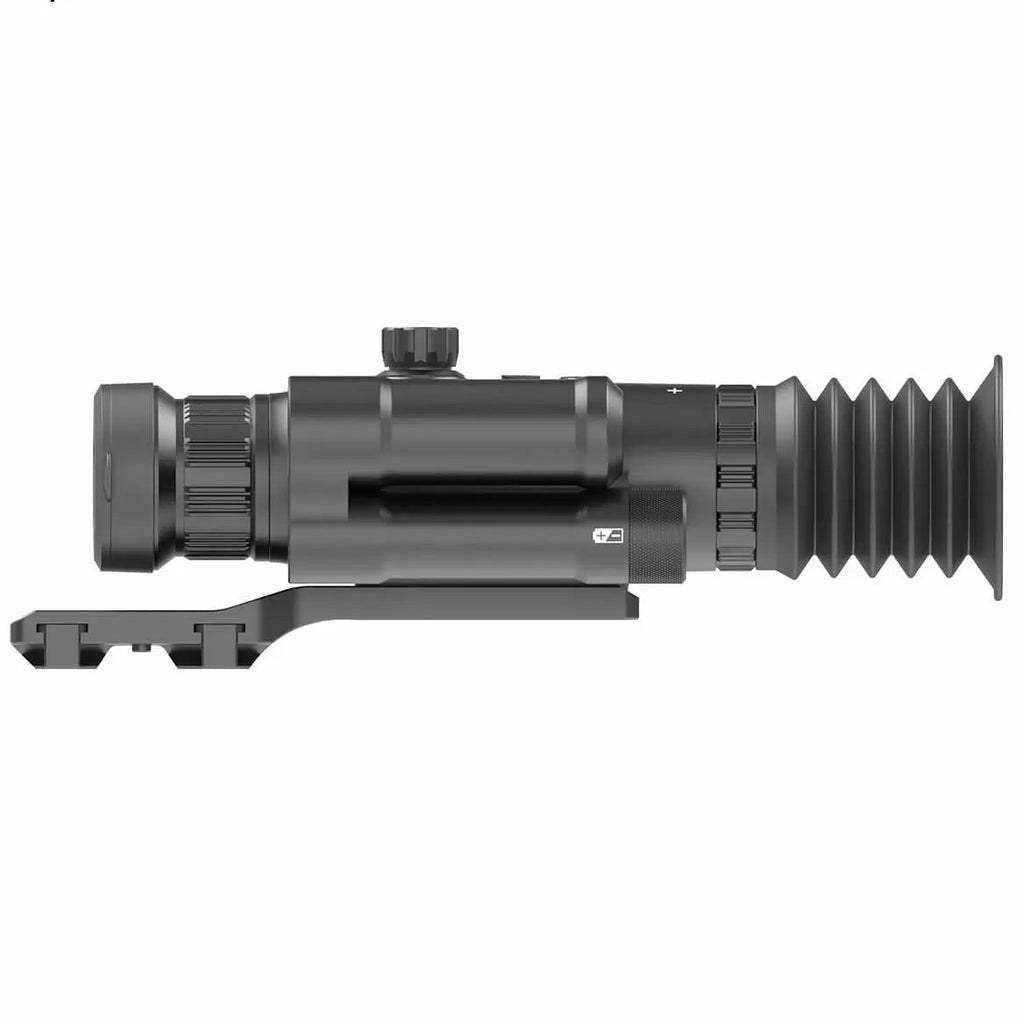

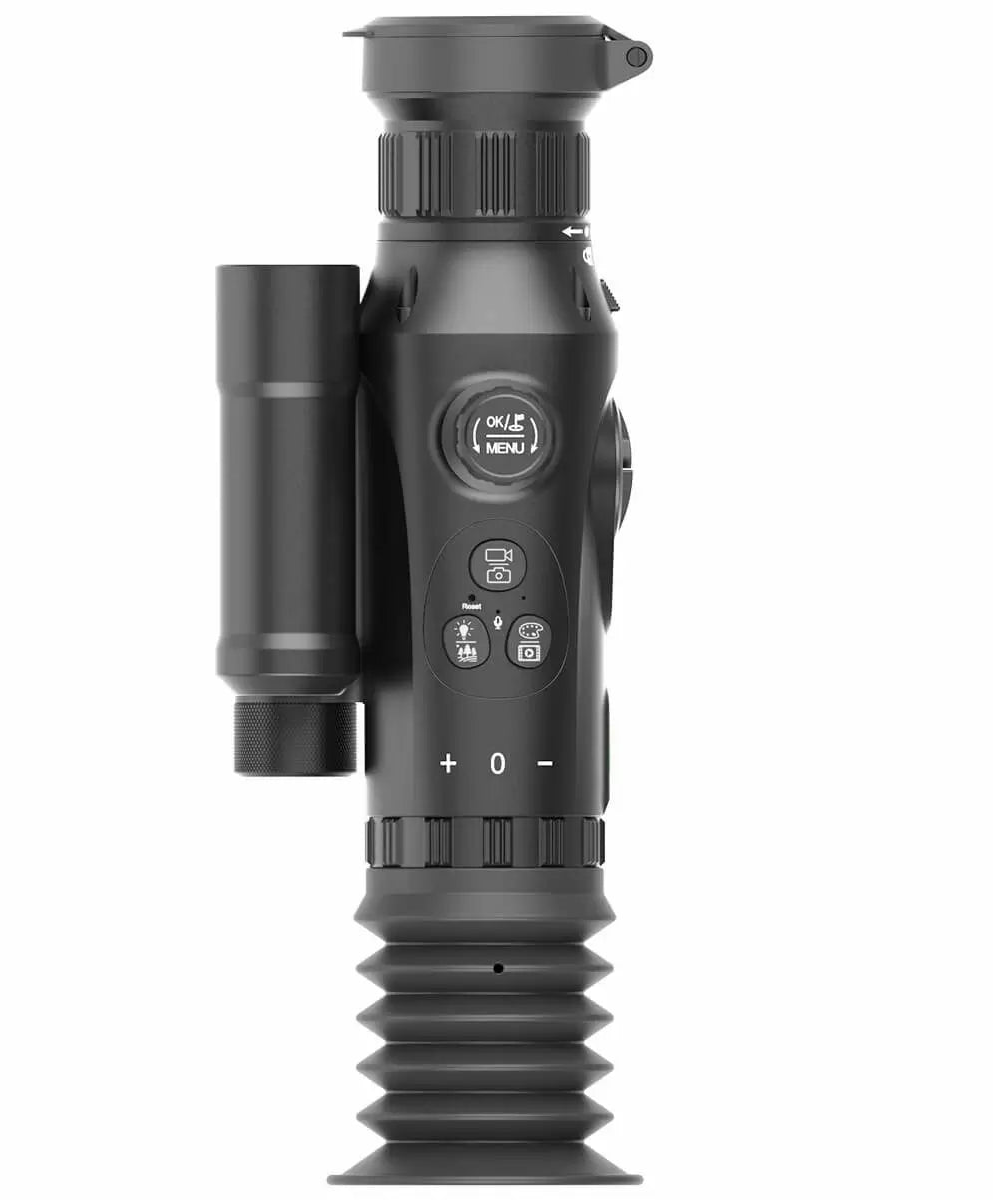

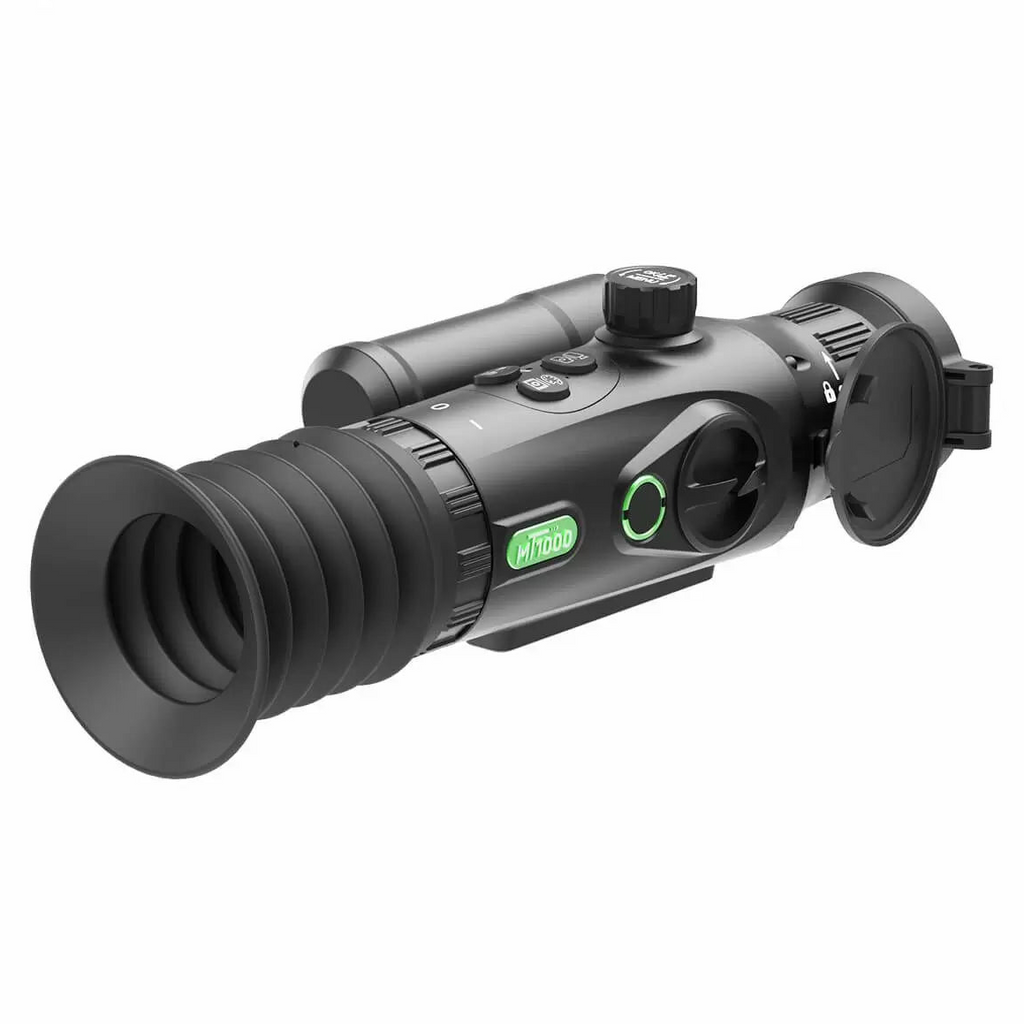

Mars MT1000LRF 640x512(60Hz) Thermal Imaging Riflescope ( COMING SOON)
35mm
$0.00 USD
Skip to product information
Mars MT1000LRF 640x512(60Hz) Thermal Imaging Riflescope ( COMING SOON)
$0.00 USD
The Mars MT1000LRF features a high‑sensitivity <20mK 640×512 @12μm thermal sensor and a full‑color 1024×768 OLED display, delivering exceptional clarity whether scanning wide‑open terrain or identifying heat signatures deep in the timber. A user‑selectable 30/50/60 Hz refresh rate allows shooters to fine‑tune responsiveness, from ultra‑smooth 60 Hz tracking to power‑saving low‑motion modes.
Versatility is built directly into the optic. The MT1000LRF ships with interchangeable 35 mm, 50 mm, and 75 mm lenses, offering 2x, 2.8x, and 5x base magnification for mid‑range and extended‑range engagements. A shutterless core eliminates mechanical NUC interruptions, providing instant, silent, and shock‑resistant imaging even in the harshest conditions.
The integrated 1300‑yard laser rangefinder pairs seamlessly with the onboard ballistic calculator to deliver precise firing solutions with zero guesswork. Freeze‑Frame Zero and Reticle Return‑to‑Center technology simplify sight‑in, while digital FFP/SFP reticles, 11 color palettes, five environmental scene modes, and Picture‑in‑Picture provide maximum control in any scenario.
Built to perform in all weather and all seasons, the Mars MT1000LRF runs on a removable 18650 battery with up to 5 hours of runtime and is protected by an IP67 waterproof housing. Whether you’re a predator hunter, long‑range shooter, or nighttime land manager, the MT1000LRF stands as a top‑tier solution for demanding thermal users.
Key Features
-
<20 mK thermal sensor (640×512, 12 μm)
-
Adjustable 30/50/60 Hz refresh rates
-
Interchangeable 35 / 50 / 75 mm lenses
-
Shutterless technology
-
Full‑color 1024×768 OLED display
-
1300‑yard laser rangefinder
-
Integrated ballistic calculator
-
11 color palettes & 5 scene modes
-
Picture‑in‑Picture (PIP)
-
Freeze‑Frame Zero function
-
Reticle Return‑to‑Center
-
Digital FFP & SFP reticle modes
-
Video and audio recording
-
90 mm eye relief
-
Removable rechargeable 18650 battery
-
IP67 waterproof & dustproof rating
-
3‑year warranty
Package Includes
- Mars MT1000LRF (Main Body) x 1
- 35mm / 50mm / 75mm Lens (Optional)
- Scope Mount x 1
- SD Card x 1
- Eyecups x 1
- Micro HDMI Cable (Optional) x 1
- Warmer Patch (for zeroing) x 2
- Type-C Cable x 1
- Flip Open Cap x 1
- Allen Keys x 1
- Lens Cloth x 1
- Velvet Bag x 1
- O-Rings
SPECS
Mars MT1000LRF Specs
| Item | Mars MT1000LRF | ||
|---|---|---|---|
| Resolution (pixels) | 640*512 | ||
| Display resolution (pixels) | 1024*768 | ||
| Pixel pitch (um) | 12 | ||
| NETD (mk) | <20 | ||
| Objective lens(mm) | 35mm | 50mm | 75mm |
| Relative aperture(D/f") | F1.0 | F1.0 | F1.2 |
| Magnification | 2X | 2.8X | 5X |
| Digital zoom | 1 - 8X | ||
| Field of view(HxV) Horizontal | 12.5 | 8.8 | 6 |
| Field of view(HxV) Vertical | 10.1 | 7 | 4.74 |
| Field of view(HxV) Diagonal | 16 | 11.2 | 7.67 |
| Focus range | 3.28yd ~ Infinity | 3.28yd ~ Infinity | 7.3yd ~ Infinity |
| Eye relief(mm) | 90 | ||
| Diopter adjustment(D) | -6~+2 | ||
| Detection range(m/yd) | 1800/1969 | 2600/2843 | 3900/4265 |
| Reticle type | 7 | ||
| Reticle color | White/Red/Green/Blue/Dark Green | ||
| Position (Profile) | 6 | ||
| Scene mode | Snow / Haze / Fog/ City / Forest / Rain | ||
| False Color | White Hot / Sepia / Ironbow / Night / Aurora / Red Hot / Jungle / Medical / Black Hot / Glory Hot | ||
| LRF detection range | 5.5-1300yard | ||
| Ballistic Calculator | Yes | ||
| Ballistic Data Profiles | 7 Sets | ||
| Photo resolution(pixels) | 1024*768 | ||
| Photo format | JPG | ||
| Frame rate | 60Hz / 50Hz / 30Hz | ||
| Video resolution | 1024*768 | ||
| Video format | MP4 | ||
| Storage | 32-256Gb | ||
| Detachable lens | YES | ||
| Automatic lens recognition | YES | ||
| Microphone | YES | ||
| 3D Gyroscope | YES | ||
| Electronic compass | YES | ||
| Capacity(mAh) | 3200 | ||
| External power supply | USB 5V 2A Type-C | ||
| Operating time(h) | 5h | ||
| Accessory rail mount | Picatinny | ||
| Body material | Aluminum | ||
| Accessory rail mount | Picatinny | ||
| Waterproof rating | IP67 | ||
| Adjustment range(MOA) | 455 MOA Windage x 365 MOA Elevation | ||
| Max Recoil Power on Rifled Weapon (Eo) G | 1000 | ||
| Operational Temperature | -4 to +122 °F | ||
| Dimension(inch) | 6.22*3.23*2.64 in | 6.77*3.43*2.77 in | 8.19*3.98*3.65 in |
| Weight | 549 g / 19.37 oz | 620 g / 21.87 oz | 770 g / 27.16 oz |
| Warranty | 3 Years | ||
Interchangeable Lenses for Versatility
Switch lenses effortlessly.
Oneleaf.ai Mars MT1000LRF 640x512 Thermal Imaging Scope offers a 35mm lens with 2x base magnification and a 50mm lens with 2.8x base magnification. Easily swap lenses with a simple twist-and-snap mechanism to adapt to your hunting needs, ensuring you’re always ready for any scenario.
EXCEPTIONAL SENSITIVITY WITH NETD <20mK
Unparalleled clarity in detecting even the slightest heat variations.
Equipped with an advanced detector boasting NETD <20mK and a 640x512 @12μm sensor, the Mars MT1000 delivers highly detailed thermal images. With an adjustable frame rate of 30Hz, 50Hz, and 60Hz, you can tailor the viewing experience for smooth tracking of fast-moving targets or enhanced static observation, ensuring nothing escapes your view.
60Hz Refresh Rate for Smooth Tracking
Customizable refresh rates.
Mars MT1000LRF offers a 60Hz refresh rate for ultra-smooth tracking of fast-moving targets. For greater flexibility, users can adjust the refresh rate to 50Hz or 30Hz, optimizing performance for power-saving or different environmental conditions.
Shutterless Solution: Instant & Reliable Thermal Imaging
Smooth image, mute operation.
The Oneleaf.ai Mars series features cutting-edge shutterless technology combined with advanced image processing algorithms. Equipped with a compact, low-power, uncooled high-resolution infrared core, it delivers "no-blind" instant thermal imaging. Free from mechanical shutters or moving parts, this design ensures durability and stability, remaining unaffected by shock or vibration for consistent performance in the most demanding environments.
Full-Color HD OLED Display
See every detail in vivid, lifelike color.
The 1024x768 full-color OLED display provides crystal-clear visuals with rich contrast, capturing every moment with remarkable precision and ensuring your target stays sharp and unmistakable.
11 Thermal Palettes
Customizable views for any hunting environment.
The Mars MT1000LRF offers 11 versatile palettes, including Black Hot, White Hot, Red Hot for object detection, Ironbow and Rainbow for heat detail, Night and Aurora for low-light use, Jungle for camouflaged environments, Sepia for reduced eye strain, and Medical for thermal pattern analysis.
Five Scene Modes
Adapt to nature’s challenges effortlessly.
Five specialized modes—Forest, Rain, Snow, Fog, and City—ensure your thermal scope performs optimally in diverse environmental conditions.
Note: In nighttime environments with temperatures below 13℃ (55.4℉), please use SNOW mode.
Built-In Laser Rangefinder
Accurate distance measurement for safer and successful shots.
The integrated laser rangefinder provides precise measurements up to 1300 yards, enabling you to calculate your shot with confidence, even at long distances.
Ballistic Calculator
No guesswork, just precision.
The built-in ballistic calculator uses laser-measured distances to recommend the perfect aiming point, ensuring pinpoint accuracy for long-range shots.
Customizable Reticle Options
Tailor your view for the perfect shot.
With 5 colors and 7 reticle shapes, you can customize the Mars MT1000LRF thermal riflescope to fit any hunting scenario or personal preference, ensuring maximum flexibility and focus.
FREEZE FRAME ZERO
Fast, intuitive, and reliable.
Freeze frame zero available, you can capture a static frame, align your reticle to the impact point, and lock your zero instantly. This eliminates error caused by hand movements, making zero faster and easier than ever.
Reticle: Return to Center
Always on the Target.
Once zeroed, rotate the knob to zoom in on your target, and the reticle will automatically return to the center, providing a more comfortable and accurate view.
DIGITAL FFP & SFP RETICLES
Choose your reticle style. Enjoy the flexibility of First Focal Plane (FFP) or Second Focal Plane (SFP) reticles with the Mars MT1000LRF.
Photo and Video Capture
Relive your success with crystal-clear recordings.
Capture every moment with the built-in photo and video recording feature, complete with an integrated microphone for audio documentation.
PICTURE-IN-PICTURE MODE
Elevate your targeting precision.
The Mars MT1000LRF’s Picture-in-Picture (PiP) mode provides a 2x magnified image of the reticle area at the top of the display. Zoom in on targets while maintaining situational awareness.
Comfortable Eye Relief
Designed for safety and comfort.
The 90mm eye relief with a soft eyecup ensures a secure, comfortable viewing experience, even during extended use.
Rechargeable & Removable Battery
Hunt longer without interruption.
Powered by a rechargeable Samsung Original 18650 lithium-ion battery, the Mars MT1000LRF thermal imaging scope delivers up to 5 hours of continuous use. The removable design makes swapping batteries effortless in the field.
IP67 Waterproof & Dustproof
Performance you can count on, rain or shine.
With an IP67 rating, the Mars MT1000LRF thermal imaging riflescope is fully protected against water and dust, ensuring reliable operation in any weather condition.
What's in the Box
