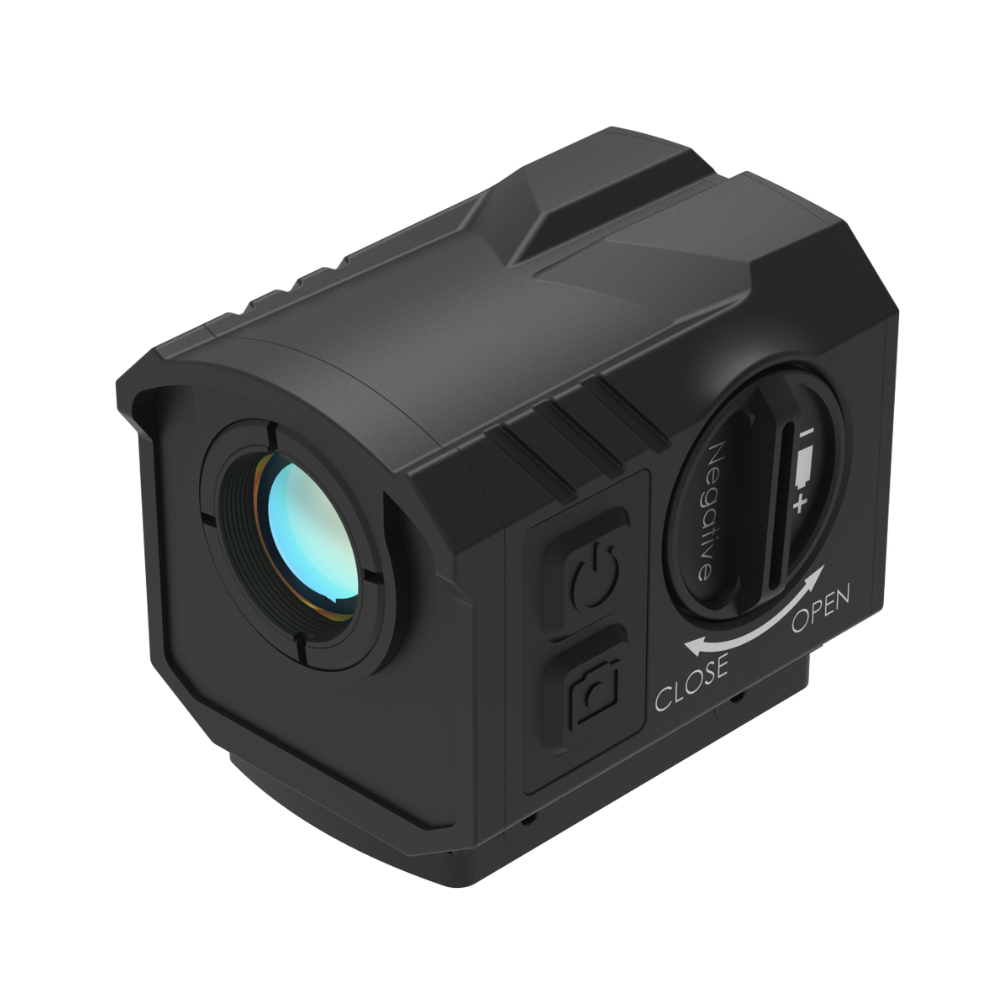

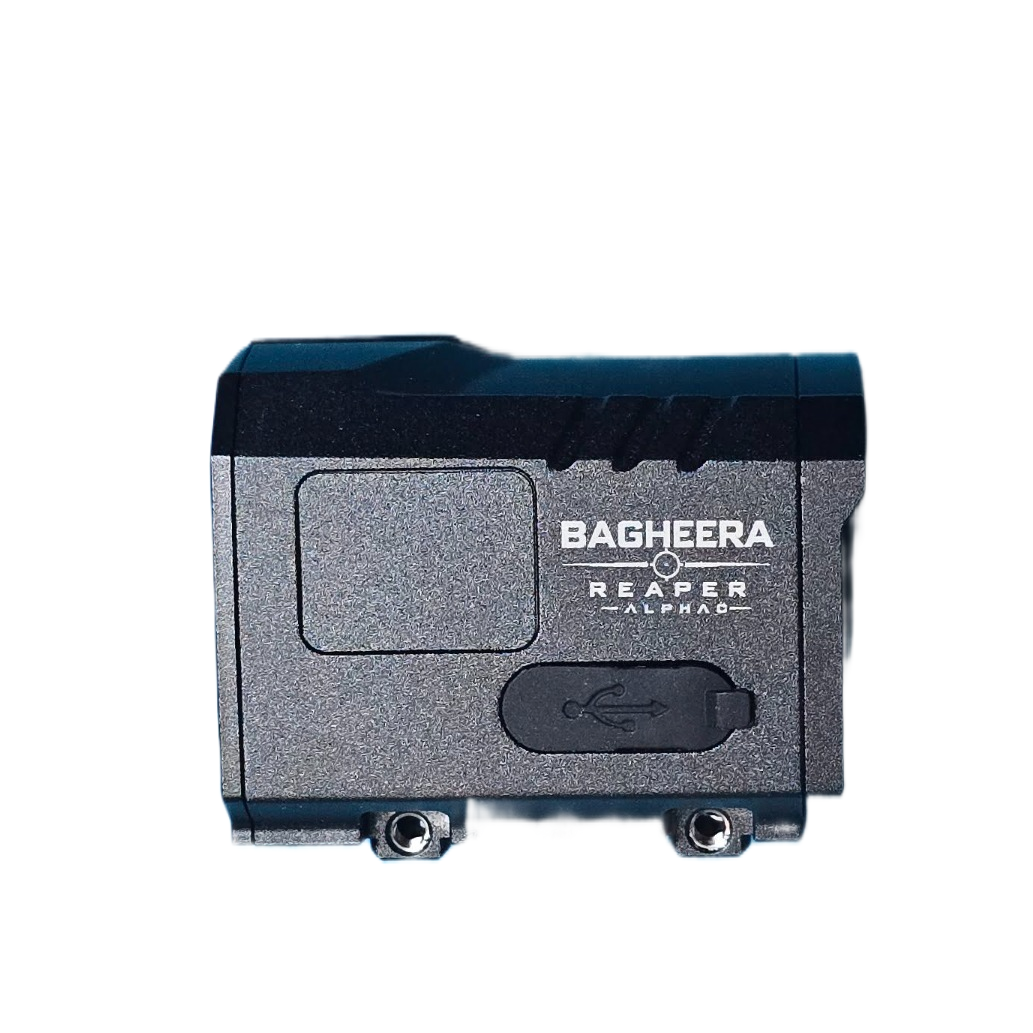

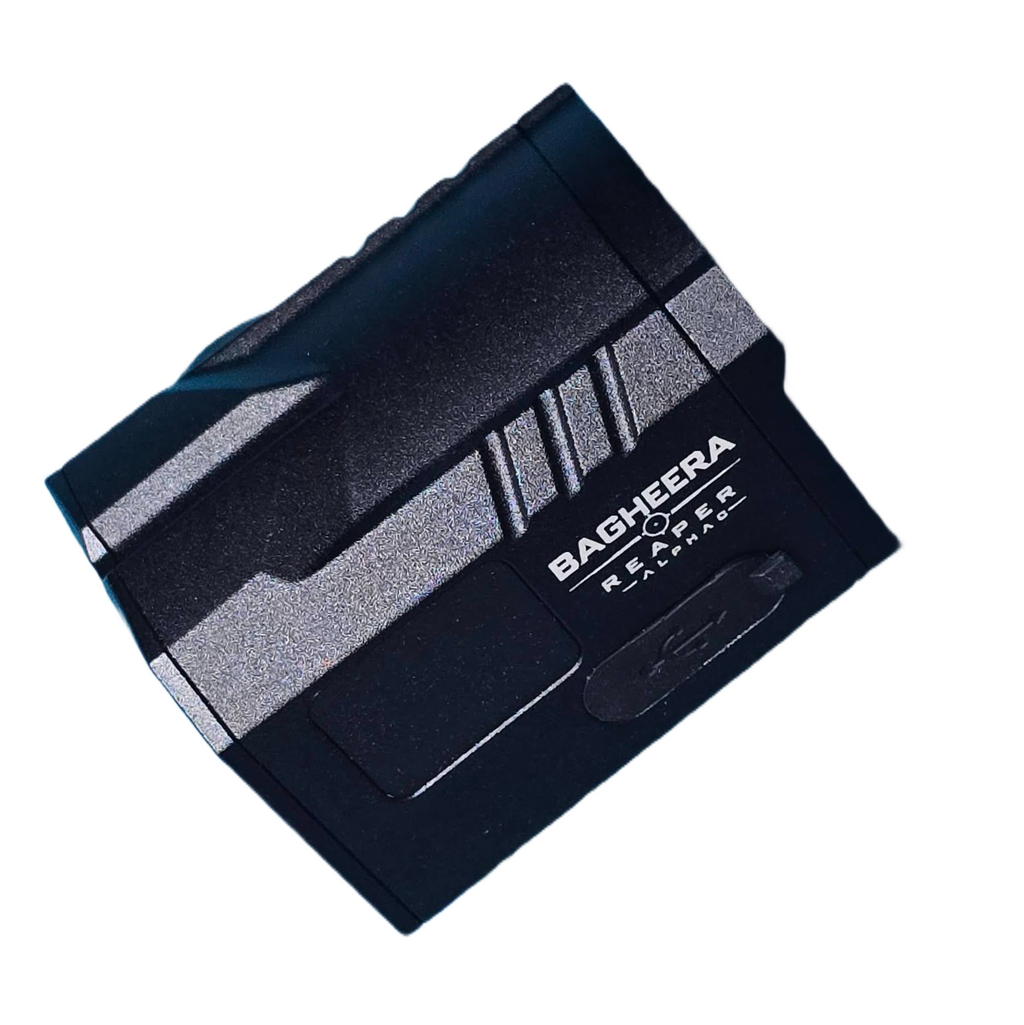

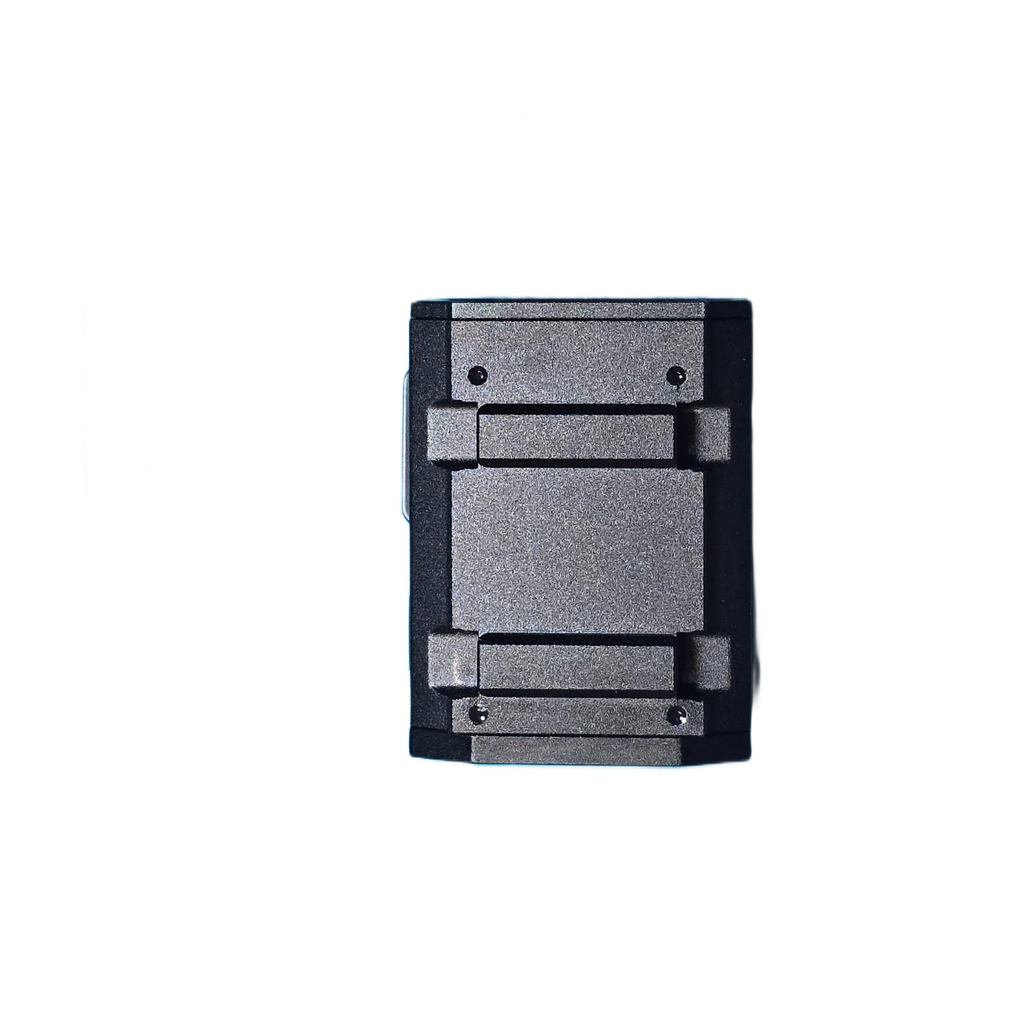

Bagheera Reaper Alpha Compact – Compact Thermal Sight

Reveal hidden heat signatures day or night with the Bagheera Reaper Alpha Compact Thermal Sight. Featuring a 256×192 thermal sensor, a fast 13mm F0.9 lens, five thermal color palettes, and an integrated display, this compact thermal imaging device delivers practical performance in a lightweight, portable package.

The Reaper Alpha Compact comes ready with a quick-detach flip-to-side mount, RMR mounting plate, two rechargeable batteries, a battery charger, and a USB cable. Its compact design and included accessories provide a flexible thermal imaging solution for compatible equipment configurations.

Key Features

256×192 Thermal Imaging

The Reaper Alpha Compact features a 256×192 thermal sensor designed to detect differences in infrared radiation. Unlike conventional optics, thermal imaging does not rely on visible light, allowing heat signatures to be viewed in darkness when sufficient thermal contrast is present.

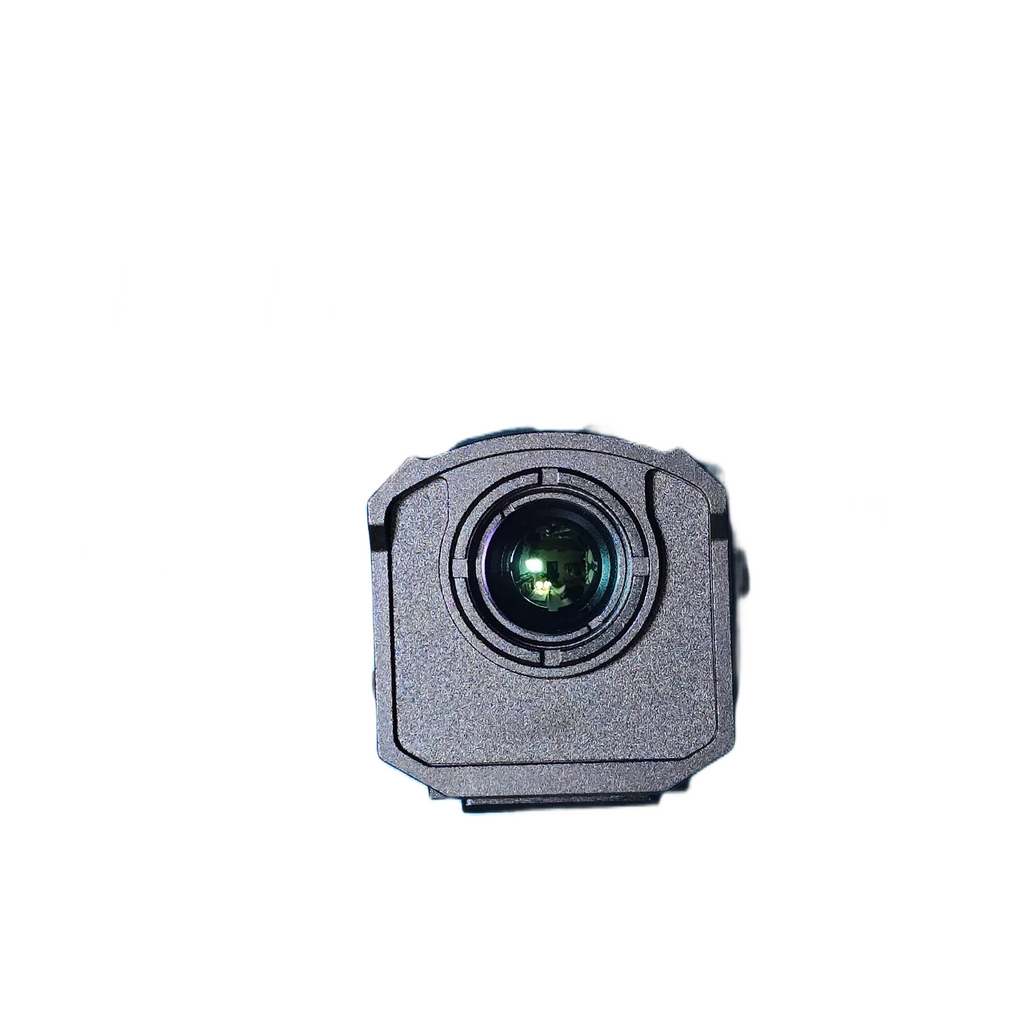

13mm F0.9 Lens

The 13mm F0.9 objective lens provides a 13.5° horizontal × 10.1° vertical field of view, offering a useful viewing area for thermal observation and scanning.

Five Thermal Color Palettes

Choose the thermal display mode that best suits your environment and viewing preferences:

• White Hot: Warm objects appear bright against cooler backgrounds.

• Black Hot: Warm objects appear dark against cooler backgrounds.

• Red Hot: Uses red tones to highlight heat signatures.

• Green Hot: Displays thermal imagery in green tones.

• Iron Red: Uses contrasting colors to help distinguish thermal details.

Switch between the available palettes to find the view that works best for your surroundings.

Integrated 1.6-Inch Display

View thermal imagery directly through the built-in 1.6-inch display with a resolution of 360 × 320 pixels. Adjustable display brightness lets you tailor the screen to your viewing conditions without requiring a separate monitor or smartphone.

Quick-Detach Flip-to-Side Mount Included

The Reaper Alpha Compact includes a quick-detach flip-to-side mount for convenient repositioning when the thermal unit is not needed in the viewing position. The quick-detach design also allows convenient removal when changing configurations.

RMR Mounting Plate Included

An RMR mounting plate is included, providing a mounting interface for compatible RMR-footprint optics. Confirm the specific optic and mounting compatibility before installation.

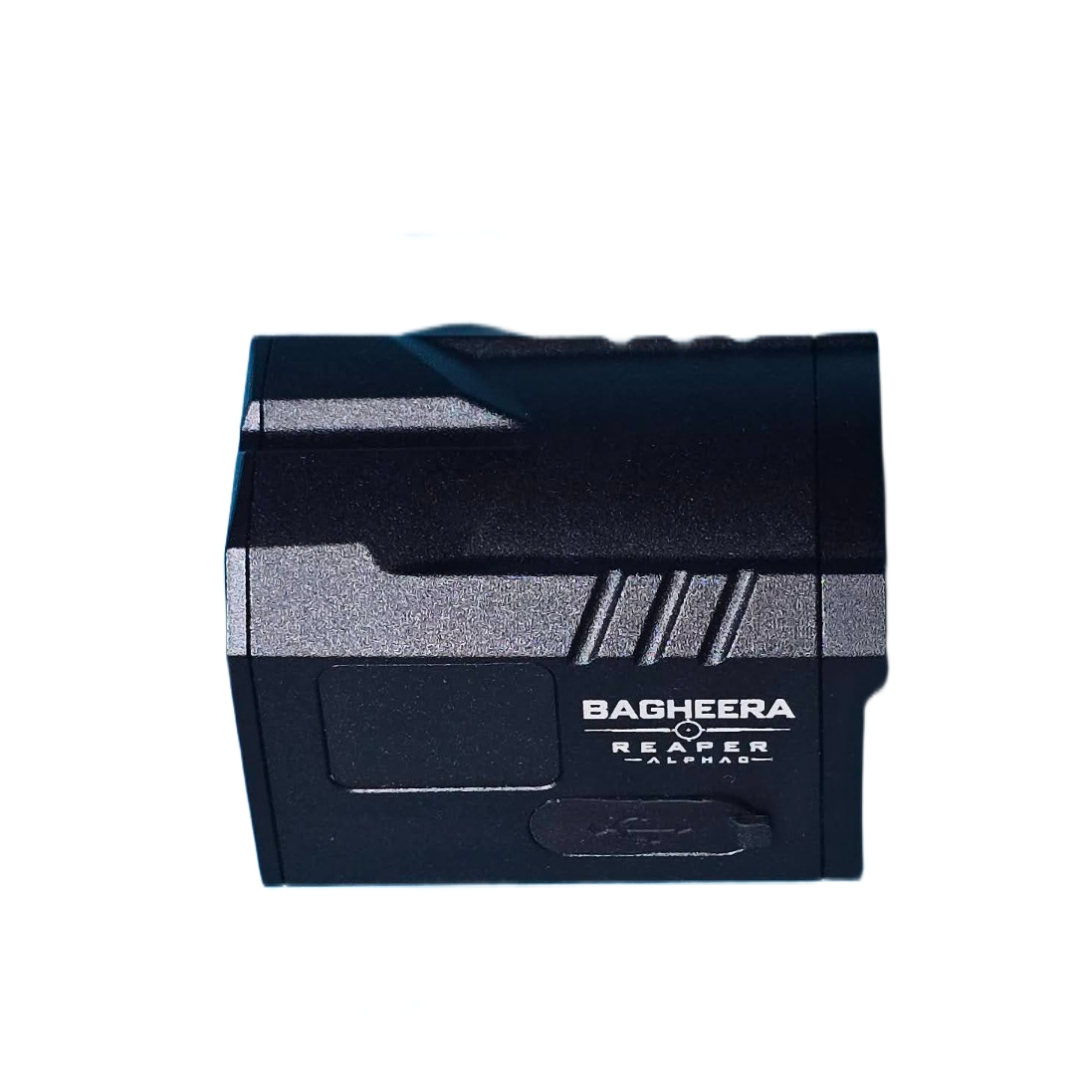

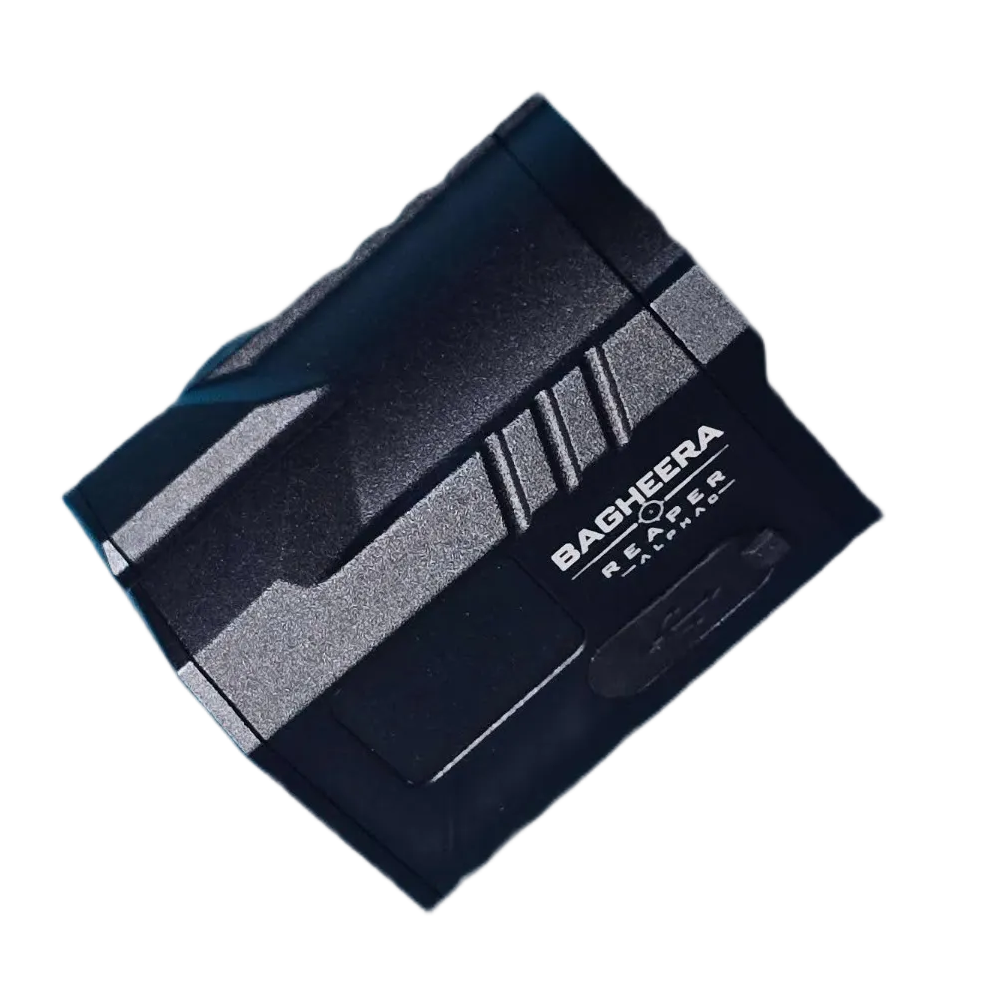

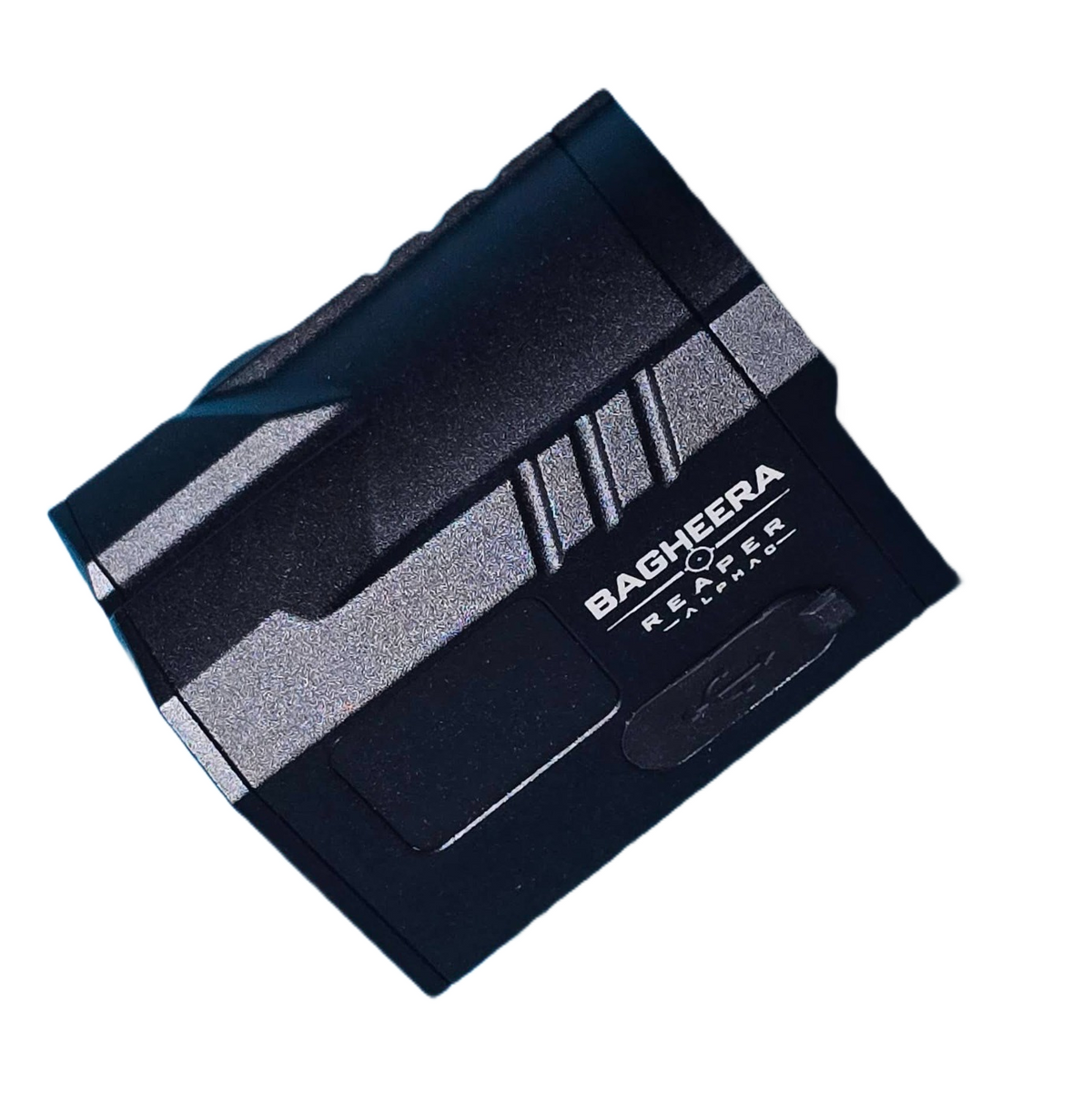

Ultra-Compact and Lightweight Design

Measuring approximately 43 × 41 × 52 mm and weighing approximately 112 grams, the Reaper Alpha Compact is designed to minimize bulk while providing thermal imaging capability.

Its compact form factor makes it convenient to transport and integrate into compatible equipment configurations.

Still-Image Capture

The integrated snapshot function allows you to capture still thermal images for documentation and later reference.

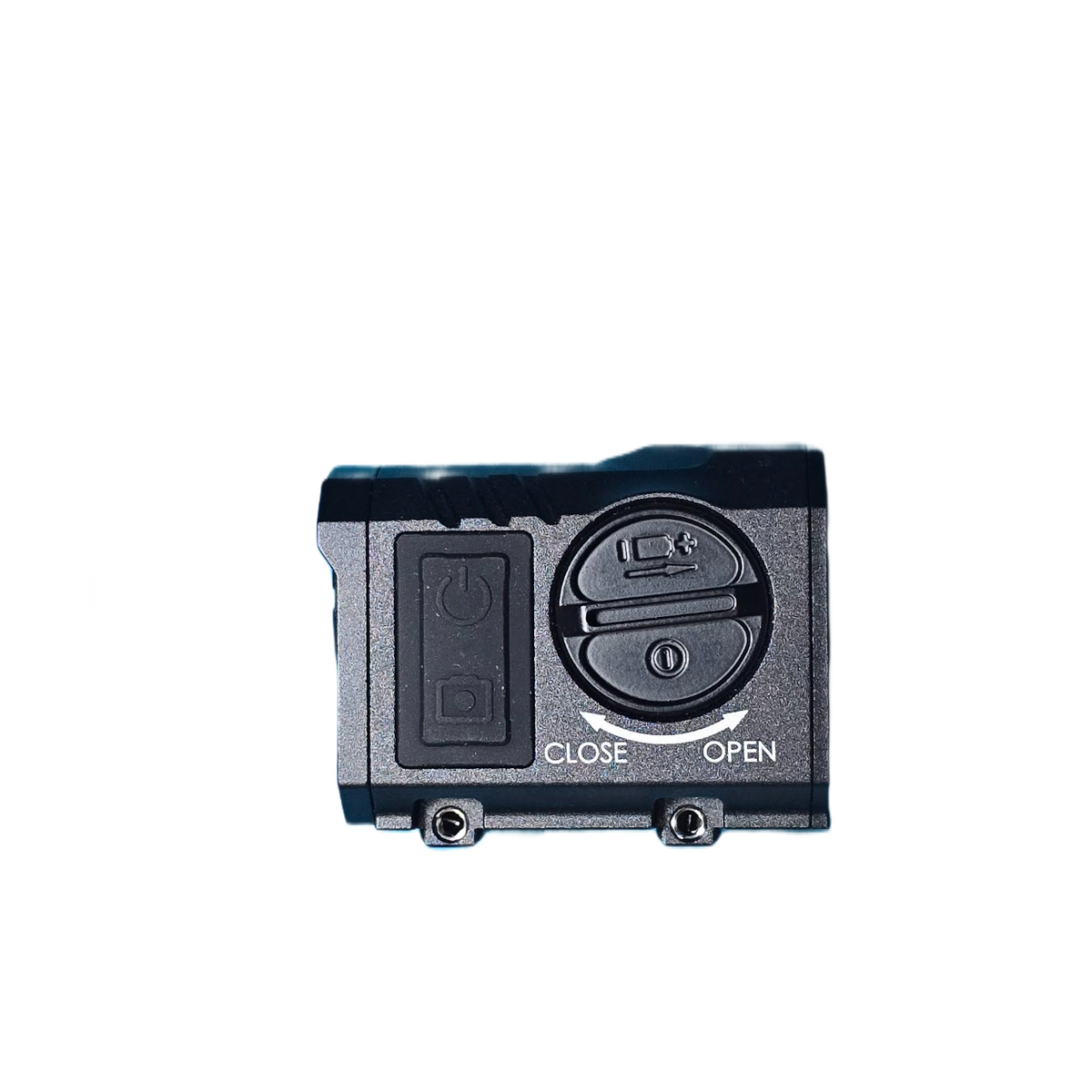

Two Rechargeable Batteries Included

The Reaper Alpha Compact package includes two rechargeable batteries, giving you a spare battery to keep charged and ready. Swap batteries as needed to reduce interruptions during use.

A dedicated battery charger and USB cable are also included, providing a convenient charging solution.

USB Type-C External Power

The device supports external 5V power through its USB Type-C connection, providing an additional power option when a suitable power source is available.

Rated operating time is at least four hours under specified conditions. Actual runtime may vary depending on temperature, display settings, and usage.

Designed for Field Use

With a listed operating temperature range of -20°C to +50°C, the Reaper Alpha Compact is designed for use across a range of environmental conditions.

HEAT UNSEEN. NOW REVEALED.

The Bagheera Reaper Alpha Compact combines compact thermal imaging, five color palettes, an integrated display, a flexible mounting arrangement, and a complete rechargeable power package in one lightweight solution.

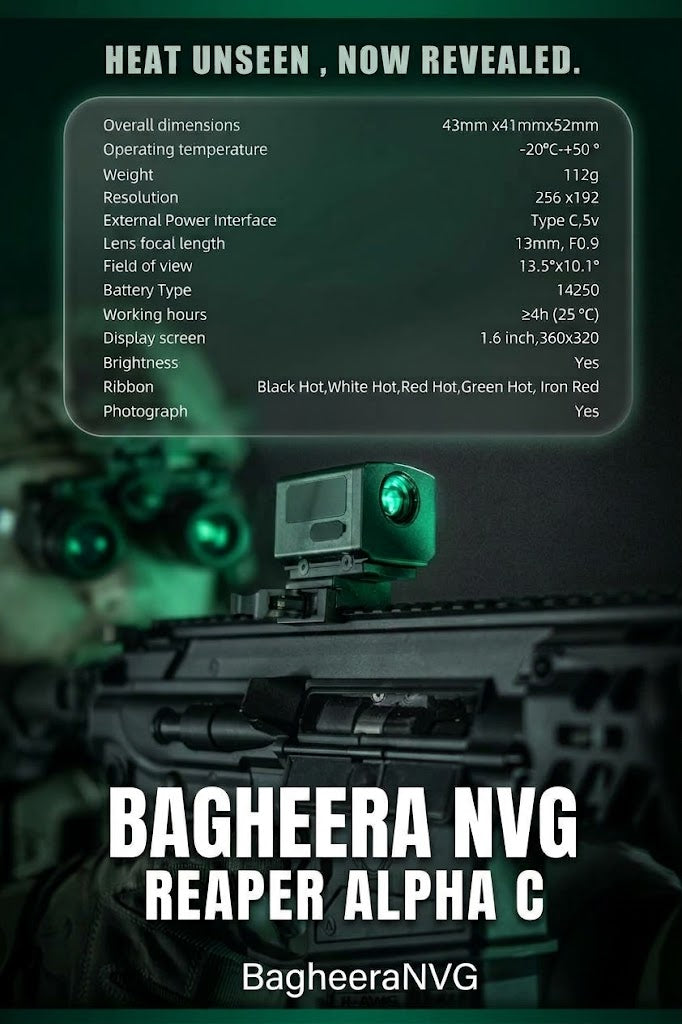

Technical Specifications

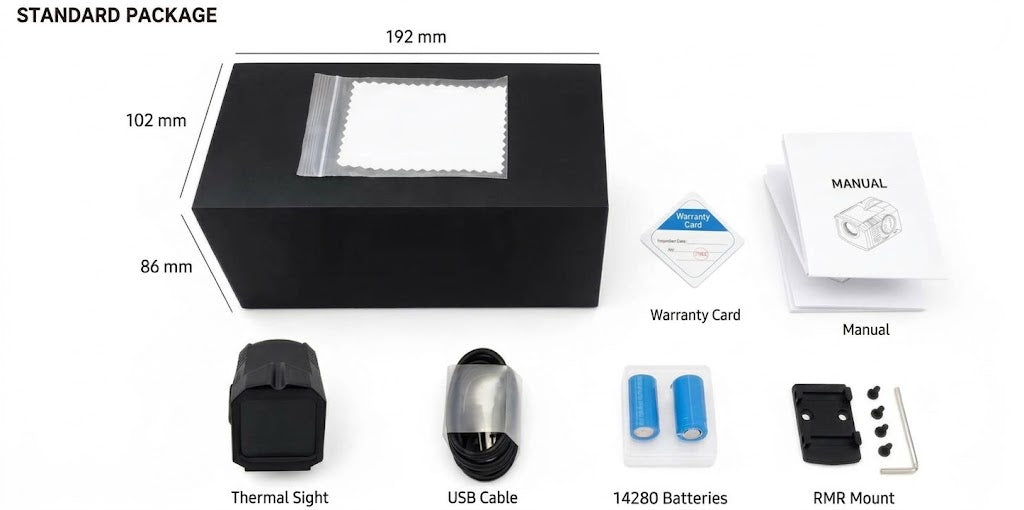

What's Included

• 1 × Bagheera Reaper Alpha Compact thermal sight

• 1 × Quick-detach flip-to-side mount

• 1 × RMR mounting plate

• 2 × Rechargeable batteries

• 1 × Battery charger

• 1 × USB cable

Frequently Asked Questions

Does the Reaper Alpha Compact work in complete darkness?

Yes. Thermal imaging detects infrared radiation rather than relying on visible light. It can display heat signatures in darkness when sufficient thermal contrast is available.

Does it require a separate display?

No. The device includes a built-in 1.6-inch display with a resolution of 360 × 320 pixels.

How many thermal color palettes are available?

Five: White Hot, Black Hot, Red Hot, Green Hot, and Iron Red.

Does it include a mounting system?

Yes. The package includes a quick-detach flip-to-side mount and an RMR mounting plate. Confirm compatibility with your particular equipment before installation.

How many batteries are included?

Two rechargeable batteries are included, along with a battery charger and USB cable.

How long does the battery last?

The listed operating time is at least four hours under specified conditions. Actual runtime depends on settings and environmental conditions.

Can it use external power?

Yes. The device supports 5V external power through USB Type-C.

How much does it weigh?

Approximately 112 grams, with dimensions of 43 × 41 × 52 mm.

What is its operating temperature range?

The listed operating temperature range is -20°C to +50°C.
