Filmed vs. Thin-Filmed vs. Unfilmed Night Vision: What’s the Difference?

If you have been shopping for a PVS-14, night vision binoculars, or Gen 3 image intensifier tubes, you have probably come across terms like filmed, thin-filmed, and unfilmed.

But what do these terms actually mean?

And does unfilmed automatically mean better?

Not necessarily.

These terms refer to the ion-barrier film used in certain image intensifier tube designs, particularly in relation to the Microchannel Plate (MCP). The film affects how electrons move through the tube and is one of the factors that can influence sensitivity, gain, halo, durability, and overall tube performance.

Another thing that causes a lot of confusion is white phosphor vs. green phosphor.

These are completely separate characteristics.

You can have a filmed white-phosphor tube, an unfilmed white-phosphor tube, a filmed green-phosphor tube, and so on.

Let's break it down in simple terms.

What Is the Film in a Night Vision Tube?

Inside an image intensifier is a component called the Microchannel Plate, or MCP.

The MCP amplifies the electrons produced when photons of available light hit the photocathode.

In traditional Gen 3 tube designs, an ion-barrier film was used at the MCP input. One of its purposes was to protect the photocathode from ions generated during the amplification process.

As image intensifier technology developed, manufacturers developed different approaches to the ion barrier.

This is where terms such as:

• Filmed

• Thin-filmed

• Unfilmed

come into the conversation.

The important thing to understand is that these terms describe tube construction, not the overall quality of the tube.

A high-specification filmed tube can still be an excellent performer, while an unfilmed tube is not automatically the best tube in every specification.

Thin-Filmed Night Vision

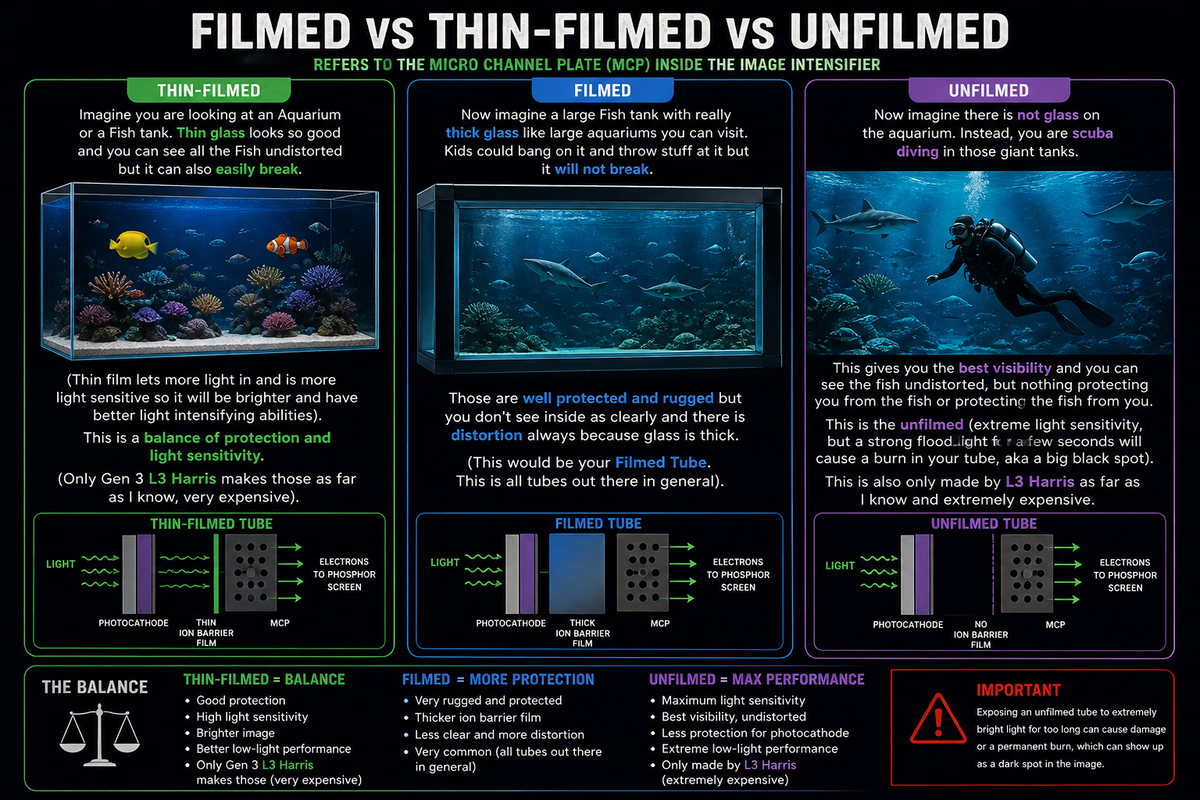

Think about looking through an aquarium.

A thick pane of glass creates more of a barrier between you and what's inside. A thinner pane allows less material between you and the scene.

That is a simple way to visualize the concept behind a thin-film design.

A thin ion barrier can provide a compromise between the traditional protection provided by a film and the increased electron transmission associated with reducing or eliminating that barrier.

This can allow excellent performance while retaining an ion barrier.

The exact construction and terminology can vary between tube manufacturers and tube designs, so "thin-filmed" should not be treated as a universal performance grade.

The actual tube specifications are still what matter when comparing two image intensifiers.

Filmed Night Vision Tubes

Now imagine a large aquarium with very thick glass.

The glass creates a stronger physical barrier between you and the inside of the tank.

That is a simple way to visualize the traditional filmed concept.

A conventional ion-barrier film provides a protective layer within the tube, but the additional barrier also affects electron transmission compared with an unfilmed design.

Filmed Gen 3 tubes have been used for decades and can provide excellent image quality, resolution, sensitivity, and reliability.

So don't make the mistake of thinking:

Filmed = bad.

It doesn't.

There are many very capable filmed Gen 3 tubes on the market, and for many users, a good filmed tube can provide more than enough performance.

When buying night vision, you should look at the actual specifications of the tube instead of judging it solely by whether it is filmed or unfilmed.

Unfilmed Night Vision

Now imagine there is no glass between you and the aquarium.

There is less of a barrier between you and the scene.

That is a simple way to visualize the basic idea behind an unfilmed image intensifier.

An unfilmed tube removes the traditional ion-barrier film from the MCP input.

This allows the tube to be designed for greater electron transmission and can provide advantages in sensitivity and low-light performance.

L3Harris, for example, has developed unfilmed Gen 3 technology and describes the removal of the ion barrier as one of the key differences in its tube design. L3Harris also points to benefits including high signal-to-noise ratio, reduced halo, and increased resistance to shock-related damage.

This is one reason high-performance unfilmed Gen 3 tubes are so desirable.

However, it is still important to remember that unfilmed is not a magic word.

The performance of an image intensifier depends on many factors, including photocathode sensitivity, SNR, resolution, EBI, gain, halo, blemishes, manufacturing quality, and the specific tube's performance.

Is an Unfilmed Tube More Fragile?

This is another area where there is a lot of misinformation.

You may hear that unfilmed tubes are extremely fragile because they don't have an ion-barrier film.

That isn't necessarily true.

In fact, L3Harris specifically states that its unfilmed Gen 3 tubes are designed for extreme ruggedness and that removing the ion-barrier film eliminates a failure mechanism associated with the film contacting the photocathode during shock.

That doesn't mean every unfilmed tube from every manufacturer is identical.

Tube construction, manufacturing quality, and specifications matter.

The important takeaway is:

Unfilmed does not automatically mean fragile.

Modern high-quality unfilmed tubes can be extremely rugged.

Can Bright Light Damage Night Vision?

Yes.

Image intensifier tubes are designed for low-light environments, not prolonged exposure to extremely bright light.

Modern tubes can incorporate technologies such as automatic brightness control and autogating to help manage changing light conditions. These systems can rapidly adjust tube operation when the scene suddenly becomes brighter.

However, these features do not mean a tube is immune to damage from excessive light exposure.

You should still avoid intentionally exposing your night vision device to extremely bright light sources for extended periods.

Treat your tube properly and it can provide years of service.

Filmed vs. Thin-Filmed vs. Unfilmed

Here is the simple version:

Filmed

Traditional ion-barrier design

A traditional ion barrier provides protection within the tube but introduces an additional barrier to electron transmission compared with an unfilmed design.

Thin-Filmed

A compromise

A thinner barrier can allow greater electron transmission than a traditional film while still retaining an ion-barrier layer.

Unfilmed

No traditional ion-barrier film

Removing the ion-barrier film allows the tube to be designed for greater electron transmission and can provide excellent sensitivity and low-light performance.

But remember:

Tube specifications matter.

Don't buy a tube simply because someone says:

"It's unfilmed, so it's better."

Look at the entire specification sheet.

What Does White Phosphor Mean?

This is where many people get confused.

White phosphor has nothing to do with whether a tube is filmed or unfilmed.

They describe two completely different aspects of an image intensifier.

The film designation describes part of the tube's internal construction.

The phosphor designation describes the phosphor screen that converts the amplified electrons back into visible light for your eye.

You can have:

• Filmed + Green Phosphor

• Filmed + White Phosphor

• Thin-Filmed + Green Phosphor

• Thin-Filmed + White Phosphor

• Unfilmed + Green Phosphor

• Unfilmed + White Phosphor

So if someone tells you they have a white-phosphor PVS-14, that does not tell you whether the tube is filmed, thin-filmed, or unfilmed.

Likewise, if someone says they have an unfilmed night vision tube, that doesn't tell you whether it has green or white phosphor.

These are separate characteristics.

Green Phosphor vs. White Phosphor

Green phosphor is the traditional night-vision appearance that most people recognize.

White phosphor produces a more neutral black-and-white or grayscale appearance.

Many users prefer white phosphor because they find the image more natural and comfortable to view for extended periods.

L3Harris, for example, offers its unfilmed Gen 3 tubes in both green and white phosphor configurations.

However, phosphor color alone does not determine the overall quality of a night vision tube.

A high-quality green-phosphor tube can still be an incredible performer.

What Should You Look for When Buying Night Vision?

This is probably the most important part.

Don't buy a night vision tube simply because someone says:

"It's unfilmed, so it's better."

There is much more to consider.

When comparing image intensifier tubes, look at specifications such as:

• SNR (Signal-to-Noise Ratio)

• Resolution

• FOM (Figure of Merit)

• EBI (Equivalent Background Illumination)

• Gain

• Halo

• Photocathode sensitivity

• Blemish specifications

• Phosphor type

• Generation

• Autogating

• Film configuration

L3Harris itself points out that the type and quality of the tube have a major impact on the performance a user receives, and that there are limited industry-wide standards for objectively comparing every aspect of image intensifier performance.

That is why looking at the complete specification sheet is so important.

What Is FOM?

FOM stands for Figure of Merit.

It is commonly calculated as:

Resolution × SNR = FOM

FOM can be useful when comparing tubes, but it should not be the only number you look at.

Two tubes can have similar FOM numbers while having different performance characteristics.

For example, one tube could have a higher SNR while another has higher resolution.

This is why we recommend looking at the complete tube specification instead of focusing on one number.

So Which One Is Best?

There isn't one answer for everyone.

If your priority is maximum low-light performance, a high-quality unfilmed Gen 3 tube can be an outstanding choice.

If you want a balance between performance and the characteristics of a filmed design, a thin-film tube may make sense depending on the specific tube.

And if you're looking for excellent performance at a lower price, a good filmed Gen 3 tube can be an excellent option.

The most important thing is to compare the actual specifications and quality of the individual tube.

The tube itself matters more than the marketing term on the sales listing.

The Easy Way to Remember It

Think about the aquarium analogy:

Filmed = More barrier → Traditional ion-barrier design

Thin-filmed = Reduced barrier → Balance

Unfilmed = No traditional ion-barrier film → Greater electron transmission

Then separately:

Green phosphor = Green image

White phosphor = White/grayscale image

These are two completely different characteristics.

Final Thoughts

When shopping for a PVS-14, night vision binoculars, or another image-intensified night vision device, don't get caught up in one specification or marketing term.

"Unfilmed," "white phosphor," and "Gen 3" can all sound impressive, but none of those terms tells you everything about the tube.

The actual performance comes from the combination of the image intensifier tube, optical system, housing, electronics, and individual tube specifications.

At BagheeraNVG, our goal is to make night vision easier to understand so you know exactly what you're buying and why one tube can cost significantly more than another.

Whether you're looking at your first PVS-14 or building a high-performance night vision setup, understanding the difference between filmed, thin-filmed, unfilmed, green phosphor, and white phosphor is a great place to start.
